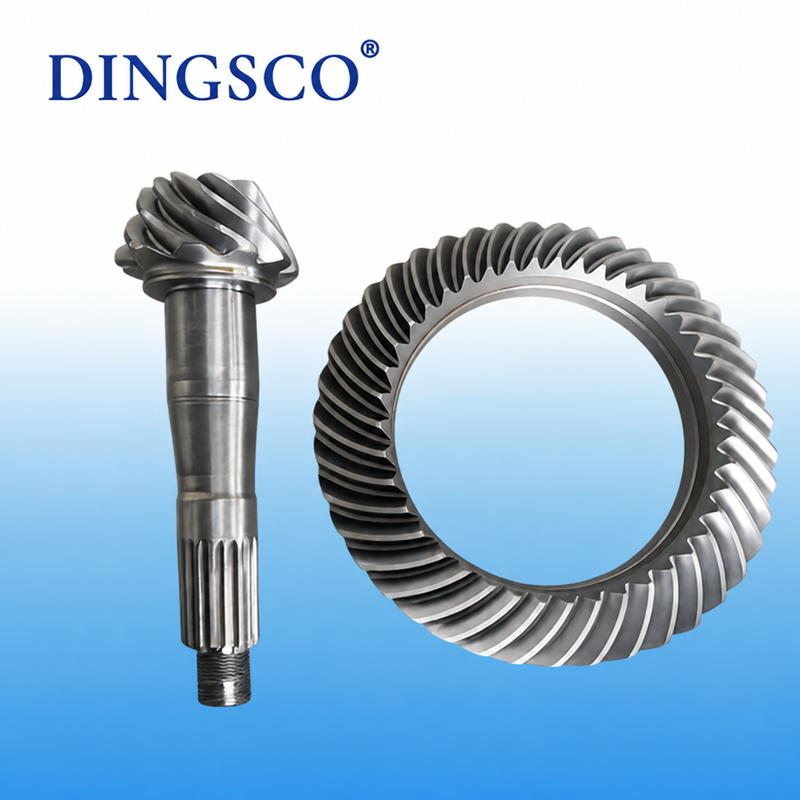

20CrMnTi Industrial-Grade High Reduction Ratio Hypoid Transmission Gear is a high-performance gear specifically designed for industrial equipment and precision power transmission systems. Its key features include the ability to achieve a high reduction ratio, high load-carrying capacity, and angular power transmission within a single gear stage, making it ideal for applications where installation space is limited but high output torque is required. It is widely used in industrial automation, robotics, AGVs (Automated Guided Vehicles), logistics and conveying equipment, medical devices, semiconductor manufacturing equipment, and new energy systems, among other advanced industrial applications.

Product Features

• Achieves significant speed reduction and higher output torque in a single stage.
• Large contact area enables reliable performance under heavy loads.
• Gear Accuracy reaches 85%–95%, reducing energy loss.
• Smooth gear meshing minimizes vibration and noise.
• Saves installation space and simplifies system integration.
• Made of 20CrMnTi alloy steel for excellent wear resistance and durability.
• Ensures stable transmission and accurate positioning.
• Suitable for automation, robotics, AGVs, and other industrial equipment.

Technical Parameter Table

 Main Applications

• Industrial Automation: Production line conveyors, assembly equipment, sorting systems.
• Robotics: Industrial robot joints, collaborative robot rotary platforms.
• AGV/AMR: Drive wheel reduction units, steering mechanisms.
• Medical Equipment: CT scanner rotary tables, precision inspection platforms.
• Semiconductor Equipment: Wafer handling systems, precision positioning platforms.
• New Energy Equipment: Solar tracking systems, wind turbine auxiliary drives.
• Heavy Industry: Rotary worktables, material handling lifts, industrial turntables.
• Machine Tools: Rotary axes, indexing tables, tool rotary tables.

Product Advantages

• Achieves large reduction in a single stage, saving costs compared to multi-stage reducers.
• High Efficiency: Superior to worm gear drives, reducing heat generation.
• Strong Load Capacity: Suitable for heavy-duty applications.
• Low Noise and Vibration: Ideal for precision equipment.
• Long Service Life: Excellent wear resistance and durability.
• Compact Structure: Flexible installation and space-saving.
• Low Maintenance Cost: Only periodic inspections required.

Production Process

• Material Selection: High-strength alloy steel or quenched and tempered steel.
• Blank Processing: Forging or milling to form the basic gear shape.
• Turning Process: Machining of outer diameter, bore, and reference surfaces.
• Gear Cutting: Precision machining using specialized hypoid gear cutting equipment.
• Heat Treatment: Carburizing, quenching, and tempering.
• Gear Grinding: Improves gear accuracy and surface quality.
• Contact Pattern Inspection: Ensures uniform and proper gear meshing.
• Accuracy Testing: Torque testing, backlash measurement, and noise inspection.
• Matched Pair Assembly: Ensures correct left/right-hand matching and precision fit.
• Final Inspection: Service life testing and lubrication condition verification.

Cautions

• Gears must be used as matched pairs; individual replacement is not recommended.
• Strict installation accuracy is required: shaft alignment, center distance, and perpendicularity must meet specifications.
• Correct installation orientation: left-hand and right-hand gears must not be reversed.
• Lubrication requirements: use the recommended gear oil or circulating lubrication system.
• Oil temperature control: maintain operating temperature between 40°C and 80°C; maximum temperature should not exceed 100°C.
• Avoid shock loads and stalling: prevent tooth surface damage.
• Regular inspection: check tooth wear, lubricant condition, backlash variation, and bearing condition.
• Abnormal condition handling: stop operation immediately if abnormal noise or vibration occurs..

Why choose us?

• 7-axis CNC Grinding: We adopt high-precision 7-axis CNC grinding machines, holding tolerances as tight as ±5μm, ensuring gears run quietly, smoothly and with outstanding durability.
• Strong technical expertise: Our core R&D team includes doctoral and master’s professionals specializing in spiral bevel gear technology, providing strong technical support for complex projects.
• Rigorous testing & high precision: All gears undergo 100% inspection with Gleason metrology systems. We can achieve DIN 6 grade accuracy with strict control over tooth profile and direction errors, keeping our quality at the industry-leading level.
• High transmission efficiency: Our gear designs support a single-stage reduction ratio of up to 300:1, with actual transmission efficiency reaching over 95%, greatly improving energy utilization.
• Excellent durability & cost efficiency: Our gears deliver 40% lower lifecycle cost and a failure rate below 0.5%, ensuring stable long-term operation and reduced maintenance costs.
• Fast response & short lead time: Supported by our digitalized production process, we are able to shorten the delivery cycle to only 20 working days, helping you accelerate project development and launch.
• Professional custom design capability: We provide fully customized gear solutions for applications requiring high-reduction, high-speed, heavy-load, low-noise, and special small-tooth profiles, based on your actual working conditions.
